AeroEggTech Ground Station 2.0 (AGC)
Overview
AGC (AeroEggTech Ground Station) is a cross-platform ground station app built with Flutter, running on Windows and Android. It offers connect, configure, mission planning, flight monitoring, and log replay in one place, plus AI assistant, voice alerts, and voice control, for fixed-wing, multi-rotor, VTOL, rover, and boat.
Version: 2.0.x | Updated: 2025

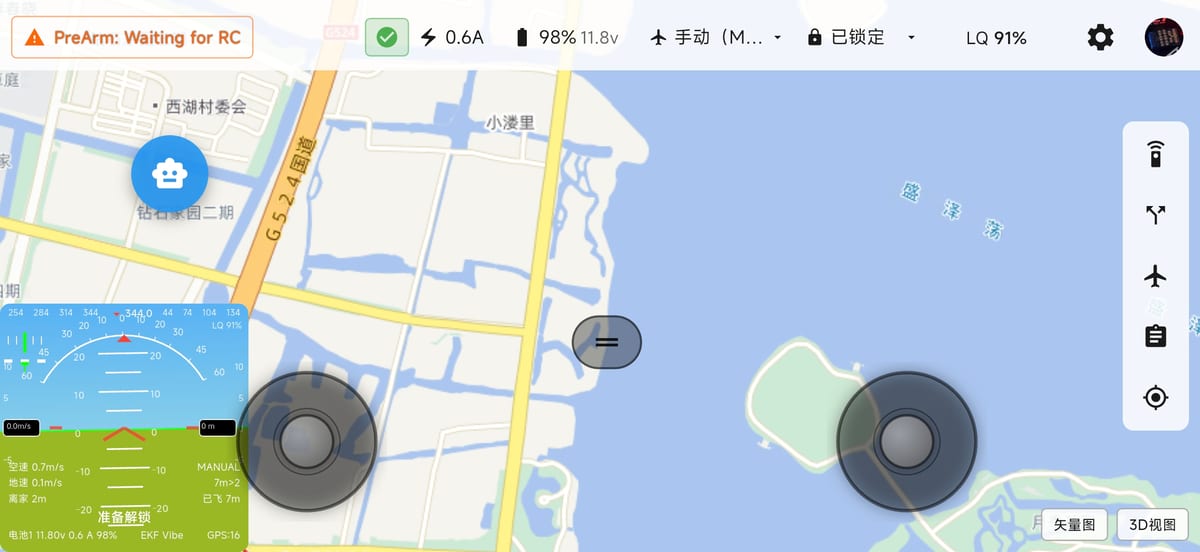

Connectivity
Supports Bluetooth (Classic-SPP / BLE), USB serial, TCP / UDP for field and simulation. Connection status is shown clearly; disconnect with one tap when connected.

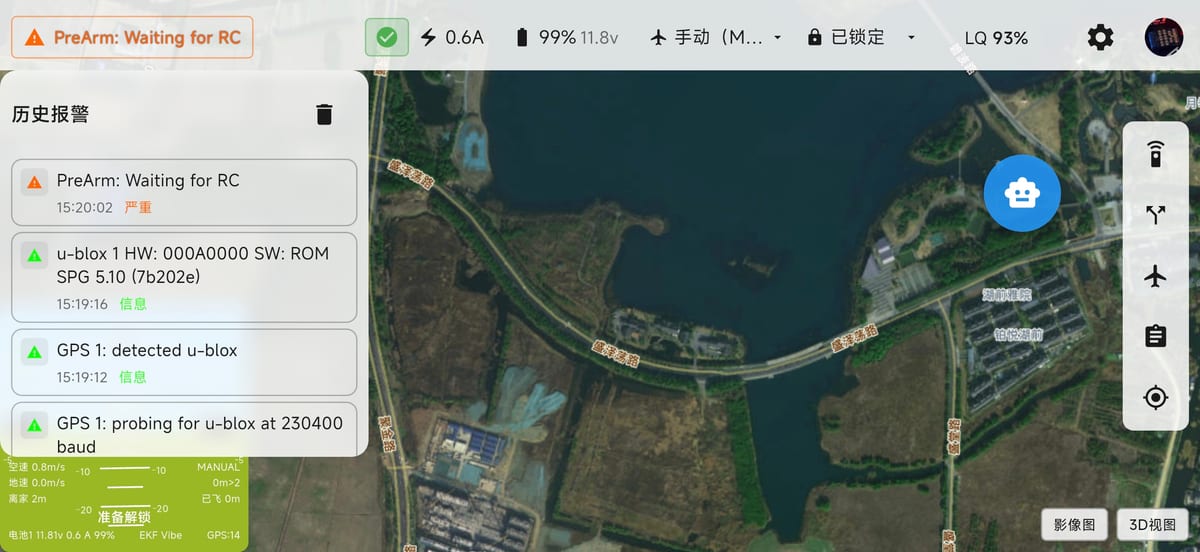

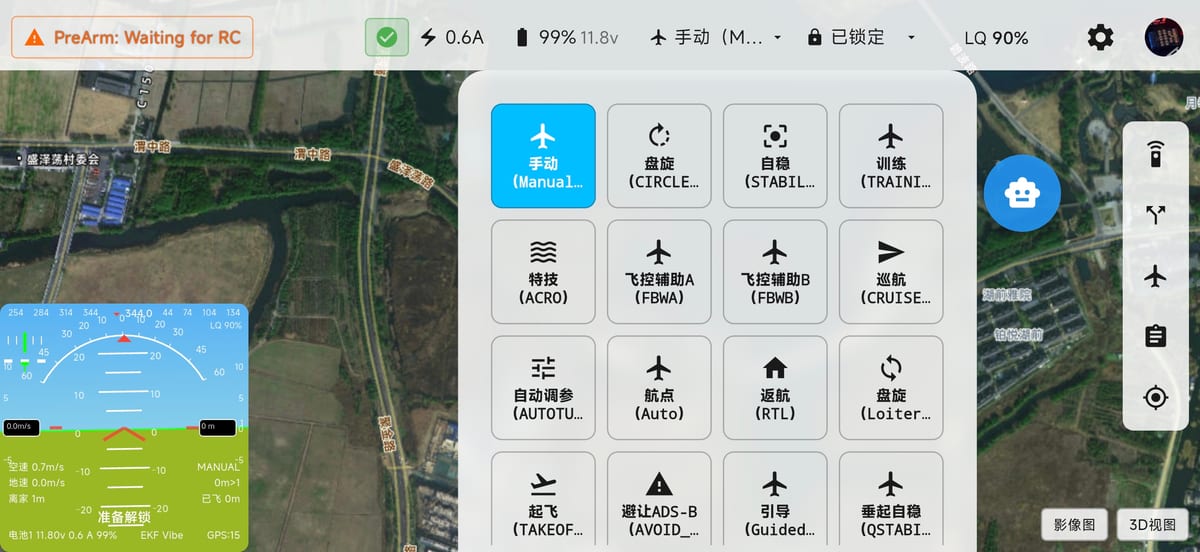

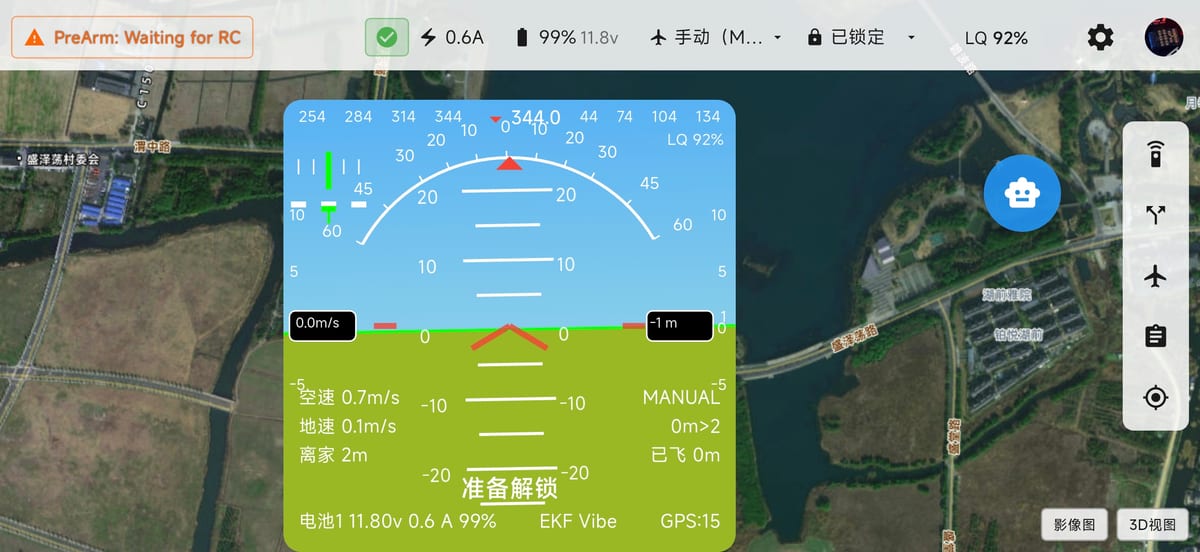

Map and Main UI
Landscape layout: map + status bar (alerts, battery, flight mode, RC) + side panel + video window. Multiple map sources; offline map cache for planning and replay without network.

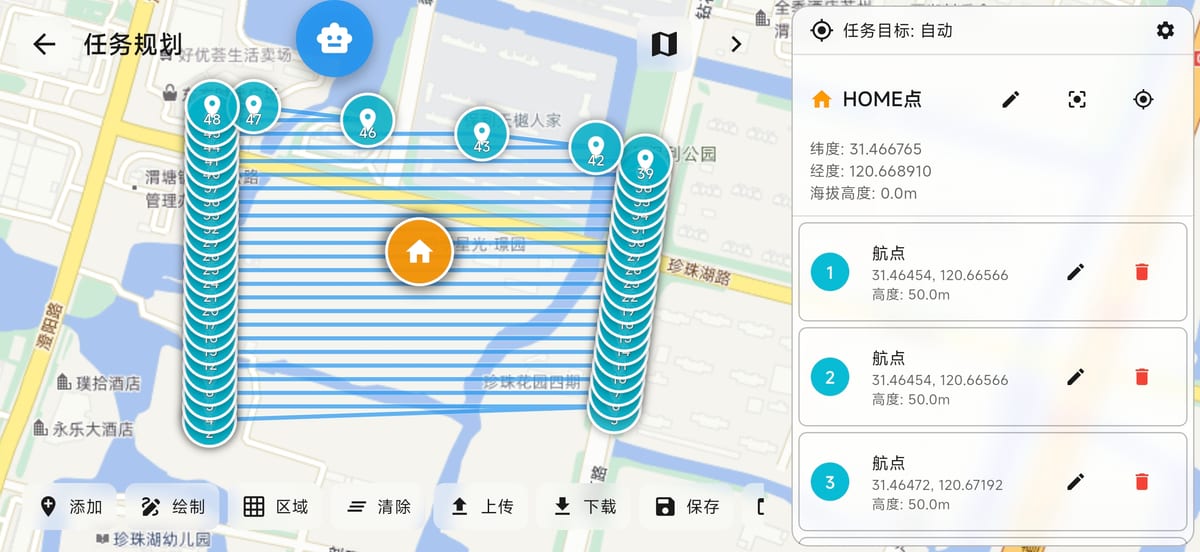

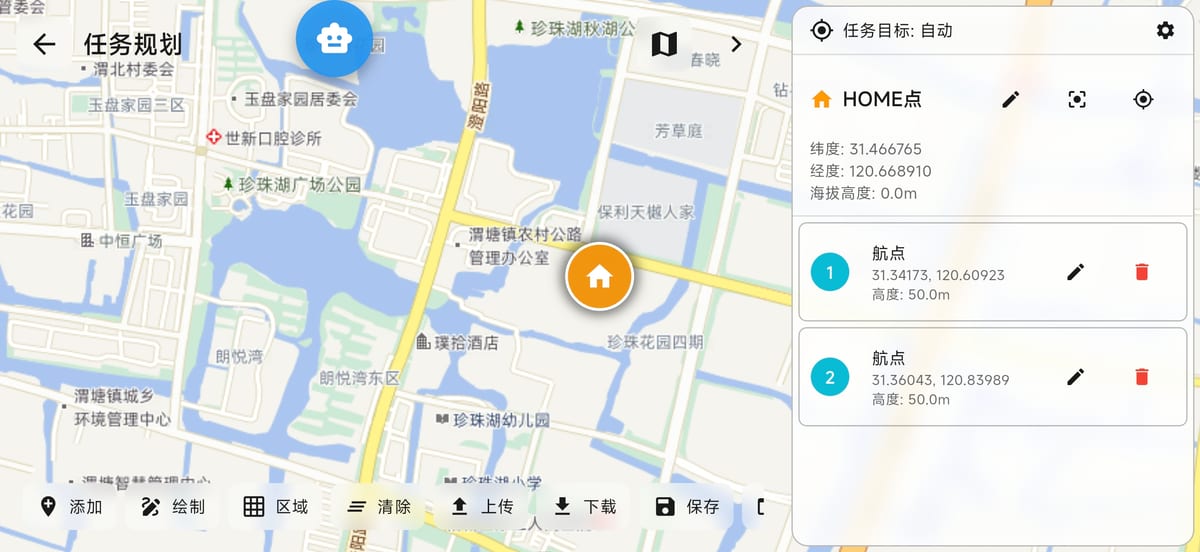

Mission Planning
HOME and waypoints: add from map or toolbar, multiple command types (takeoff, land, RTL, loiter, etc.). Polygon areas and survey grids; upload/download and save missions locally.

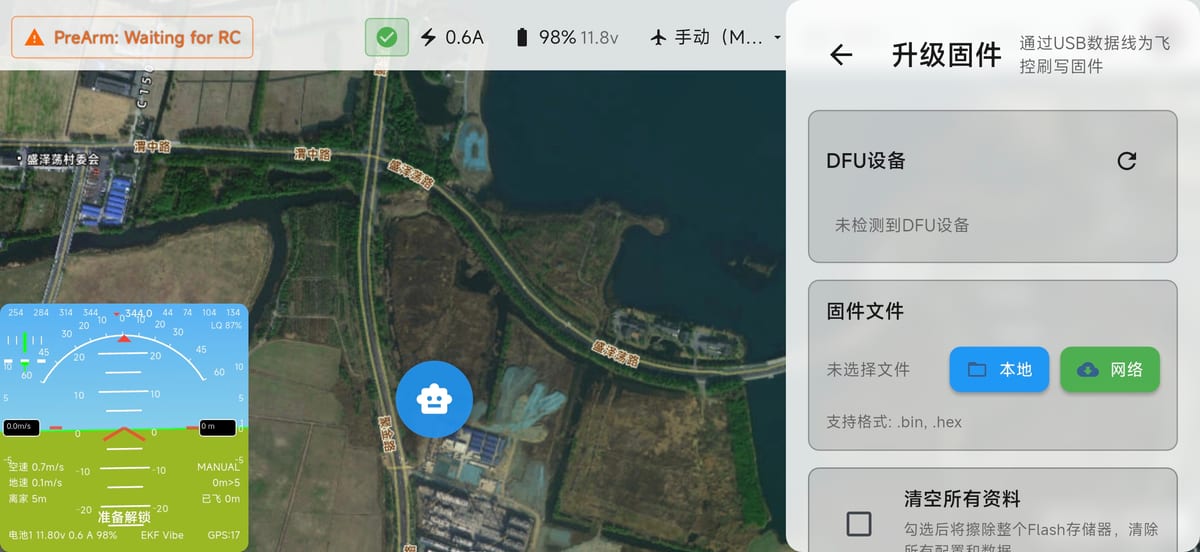

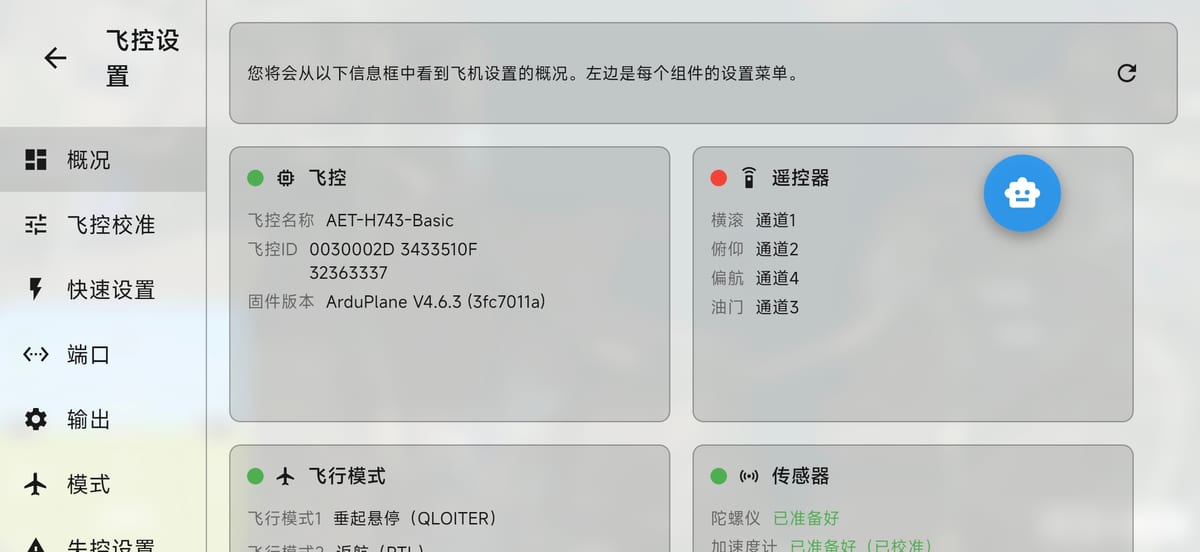

FC Setup and Dual Protocol

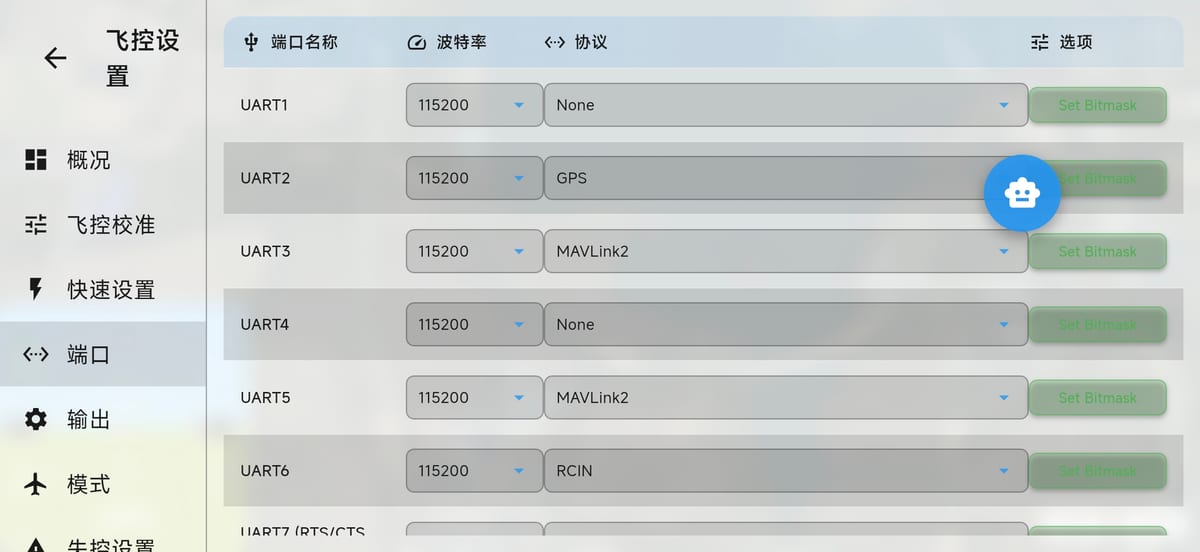

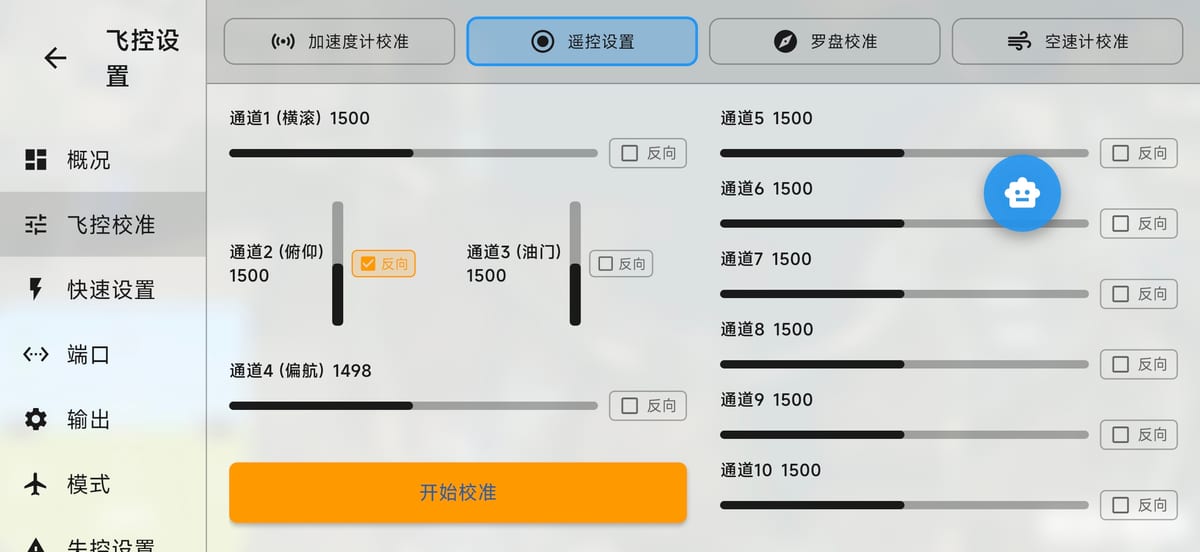

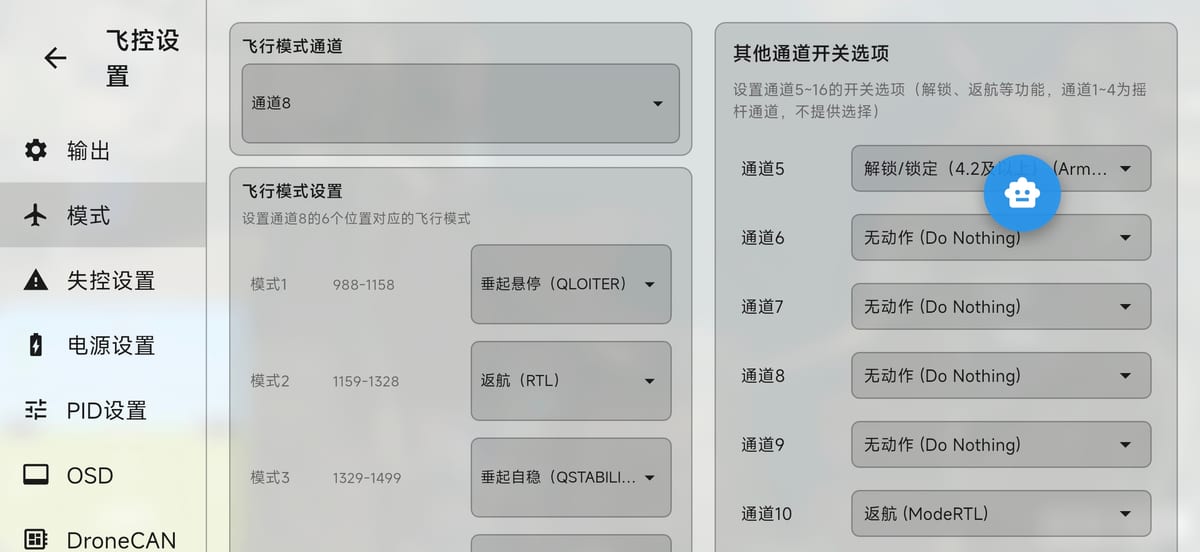

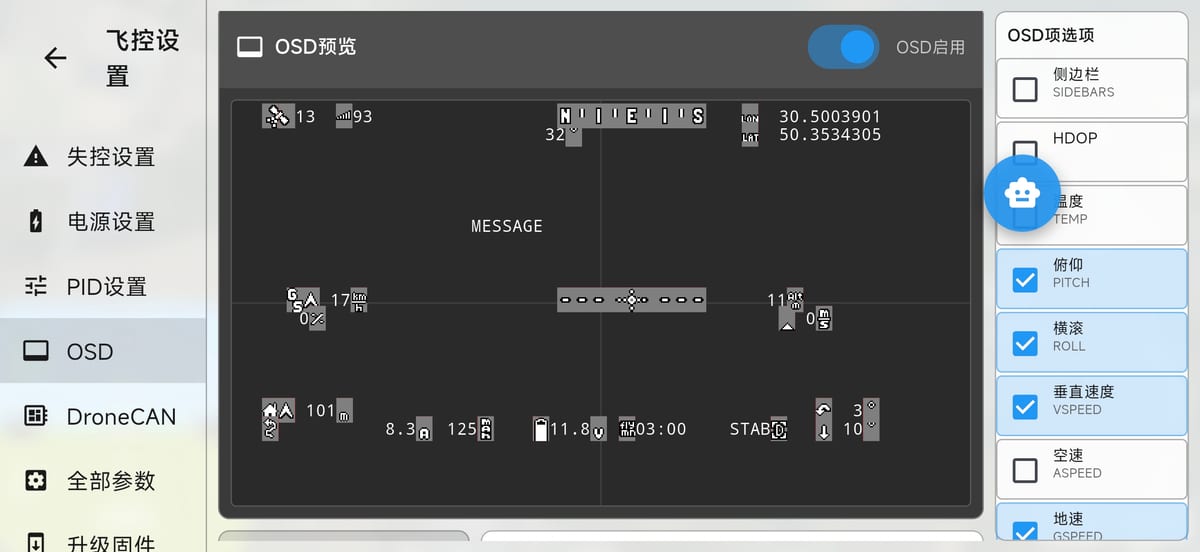

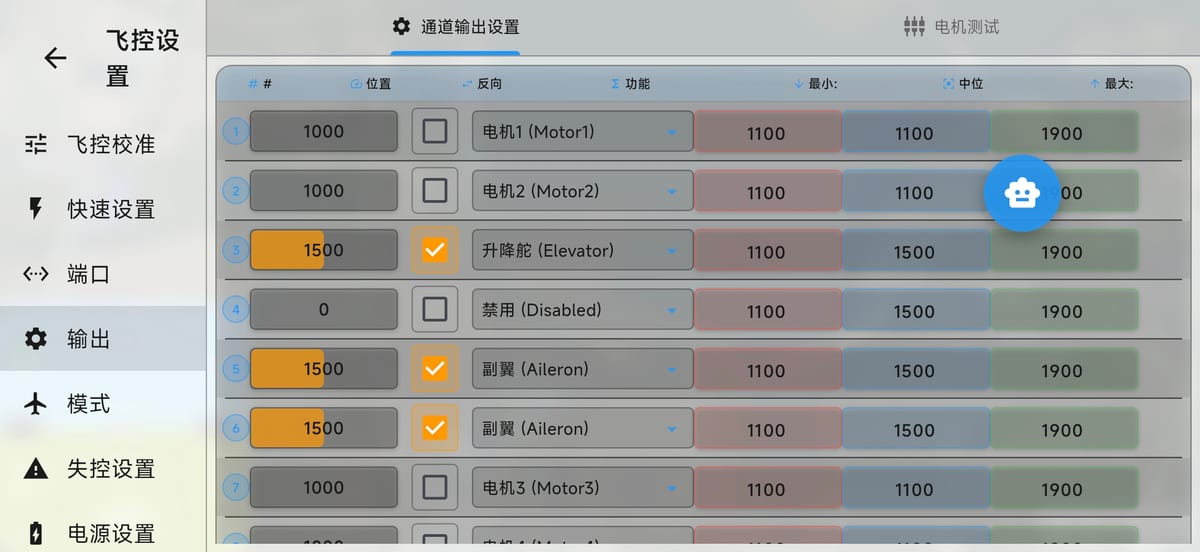

MAVLink (ArduPilot) and MSP (INAV) auto-detected. Full ArduPilot setup: calibration, quick config, serial/modes, PID, OSD, parameters, firmware. When INAV is detected, the INAV Configurator UI is shown, aligned with INAV 9.x.
Logs and Video
Local flight recording and log replay with map track, graphs, and variable speed. Video window in main UI for RTSP, OpenIPC, etc.; channel and recording config supported.
AI and Voice

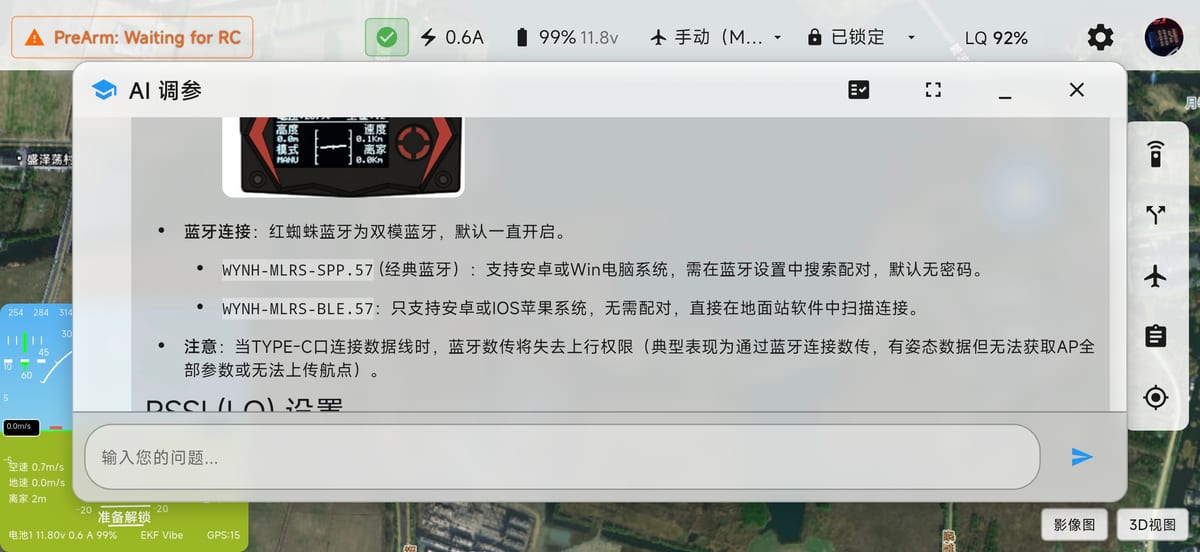

Built-in AI assistant and knowledge base for parameter checks and Q&A. Voice alerts for telemetry and warnings; voice control for hands-free commands.

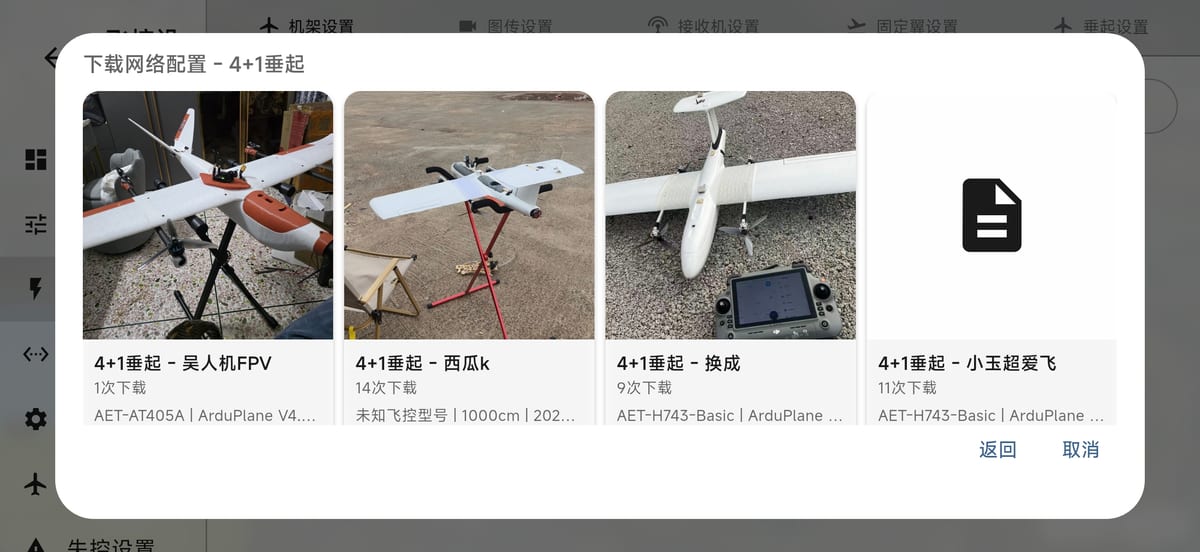

More Screenshots
Additional AGC interface screens for reference.
